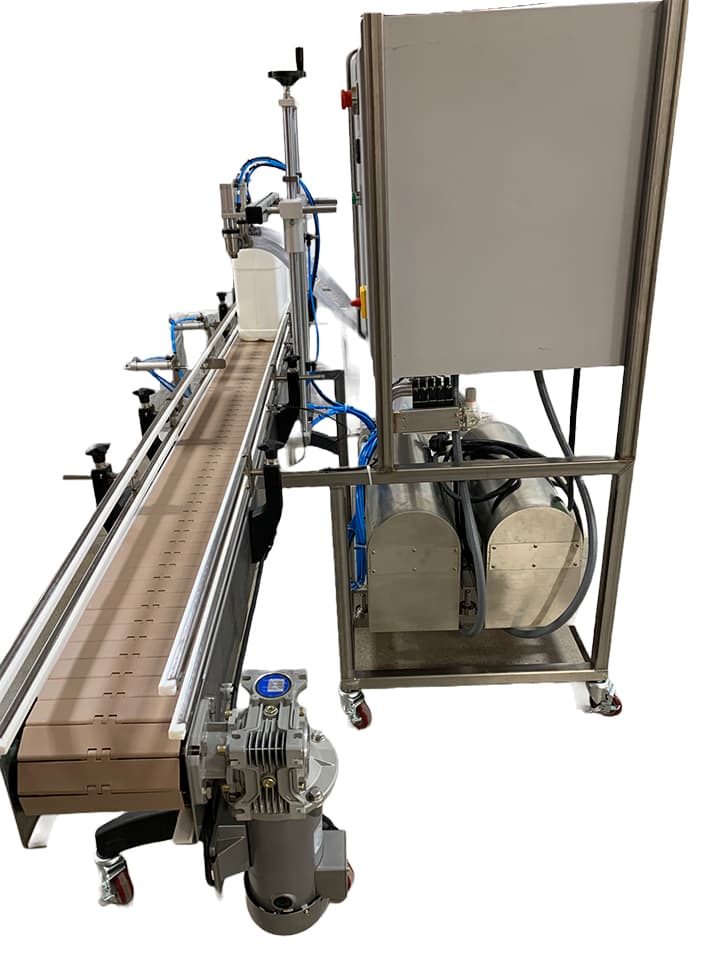

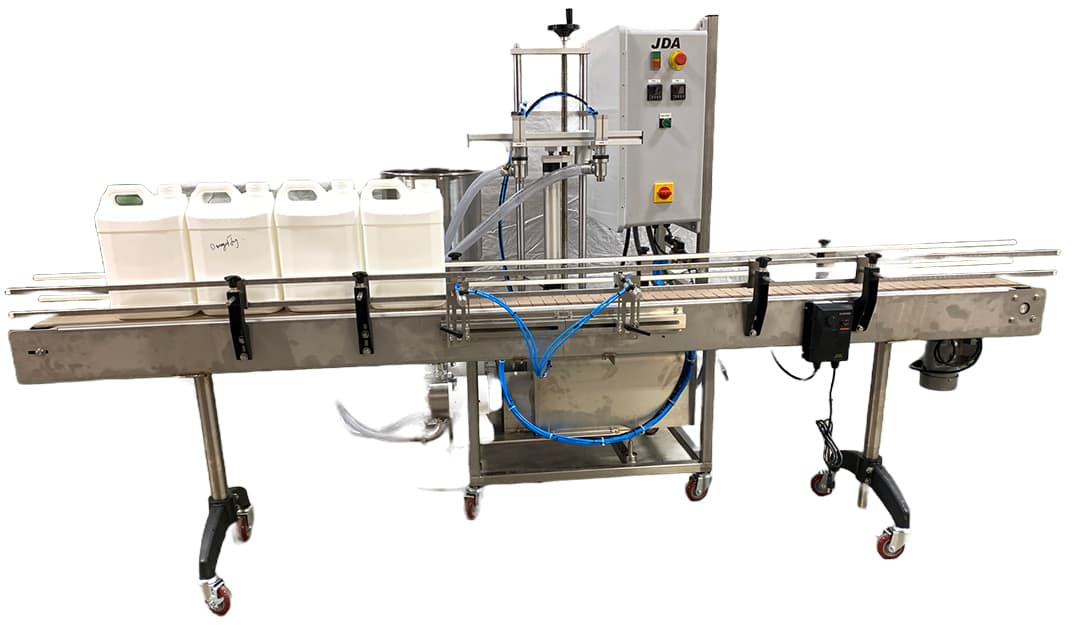

Inline Pump Bottle Filler
Model LP48-12
The LP48-12 inline pump bottle filler an excellent choice for filling sauces, cosmetics, and chemicals. It can also fill high temperature cooked sauces.
Get a quick quote!
Simple, affordable pricing. Free product demos are also available.
Features
- 304 Stainless steel heavy duty stainless steel welded frame.
- All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
- Special seals or hoses by order.
- Calibrated guide for fast height changeovers.
- Leveling of machine by leveling screws.
- PLC for all machine logic functions, special modifications on programs available for special adaptations.
- Three filling options on control panel (Up, Bottom Up and Down)
- Front panel conveyor speed control for machine sold with conveyor.
- Front panel Start and Emergency STOP for easy access.
- Front panel nozzle code for changing nozzle quantities.
- Sensors standard for container gating.
- Expandable to 12 pumps to increase speed to 96 bpm
- No bottle no fill PLC controlled.

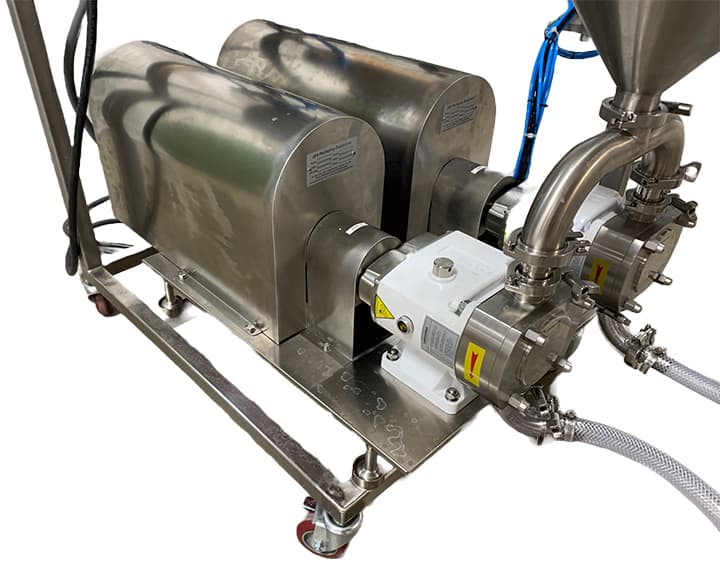

- Air over oil application on nozzle bar to create a smooth and constant filling speed.
- Hardened Stainless steel calibrated shafts with linear bearings for nozzle rack movement smoothness and durability.
- 8 inch stroke air cylinder with magnetic sensors for nozzle up and down movement.
- Hand wheel and shaft mounted stoppers for height and stroke adjustment.
- Hand wheel counter mounted on height control threaded rod.
- Nozzle spacing fully adjustable through top or bottom screw.
- Nozzle stroke adjustments from 0 to 8 inches.
- Entry and exit bottle gating cylinders adjustable, sideways, up and down and inside and outside.
- Will work with plastic, glass and metal containers.
- No change parts needed for various types of containers.
- Air filter-regulator and safety lockout valve included.
- Spacing and additional bottle control obtained by flow controls mounted on air gating cylinders.
Specifications
- Power: 220v
- Air volume: 5 CFM @ 80 psi
