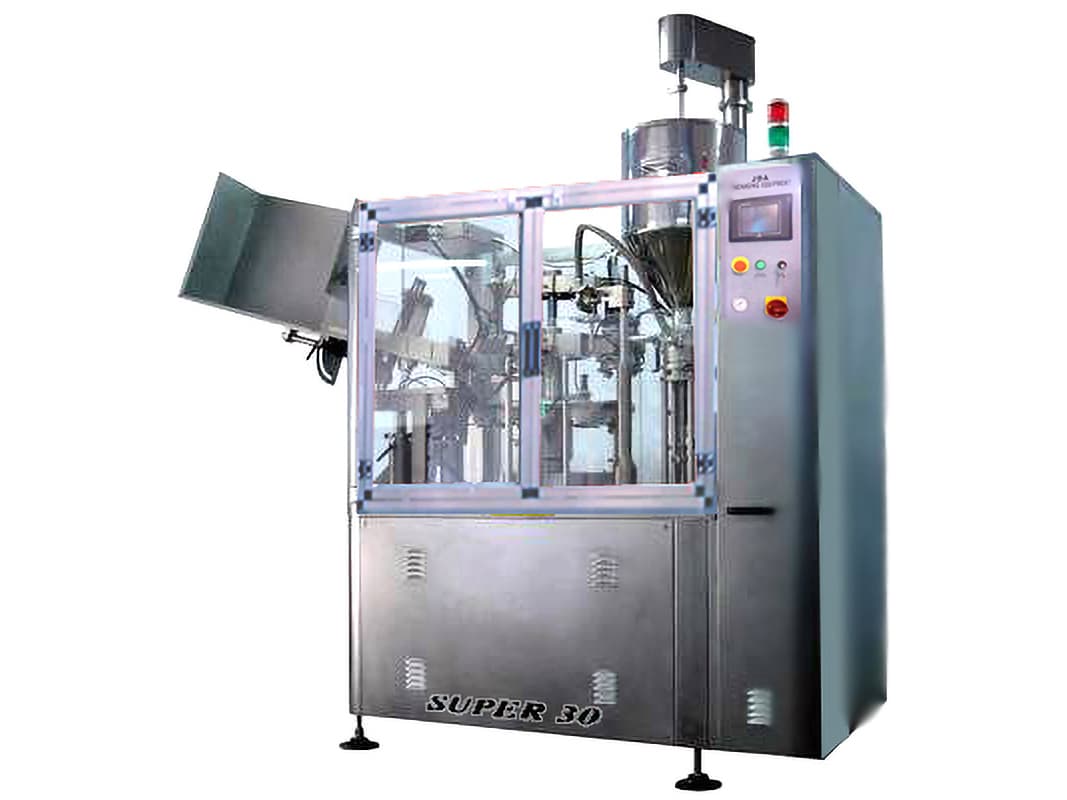

Automatic Tube Filler & Sealer
Model SUPER-30
The SUPER-30 automatic tube filler and sealer is available in 3 configurations. It can be equipped to seal plastic or metal tubes. The SUPER-30 can also feature footswitch operated dispensing of product for filling of jars and bottles. JDA factory trained technicians commission,operate and set all tube fillers prior to delivery. As part of our commitment free phone technical support, spare parts and quick delivery of changeparts are all available from our head office in Toronto,Canada.
Get a quick quote!
Simple, affordable pricing. Free product demos are also available.
Features
- JDA EASYVIEW TOUCHSCREEN system
- Display to show all automatic settings and related data
- Product output display
- Stainless steel construction and components
- High response frequency encoder to assure smooth function
- Variable speed drive system
- Automatic Tube load system with bulk hopper
- 316 stainless steel product contact parts
- Piston filler with bottom up fill and no drip nozzle
- Fill volume adjust equipped with dial indicator
- No tube / no fill sensor
- Hot air equipped tube sealing system
- Digital temperature control
- Crimp jaw equipped with date/lot coder system
- Metal tube filler equipped with two-fold, three-fold edge or saddle type fold
- Refrigeration cooling system included (for plastic tube filler only)
- Tube trimmer
- Operator safety door system with interlocks
- Automatic tube ejection system
Specifications
- Voltage: 220V/60Hz 3 Phase
- Filling Range: 5 to 240 ml/larger available
- Capacity: To 2400 tubes per hour
- Air consumption: 6 CFM/80 PSI
- Tube length: 200 mm max.
- Tube diameter: 10 to 50 mm/larger available
- Dimensions: 76"x40"x76"
